Type: DC/DC Converters
Output Frequency: DC-DC
Output Type: Single
Size: 18mm x 10.16mm x 2.7mm
Output Power: 1 - 50W

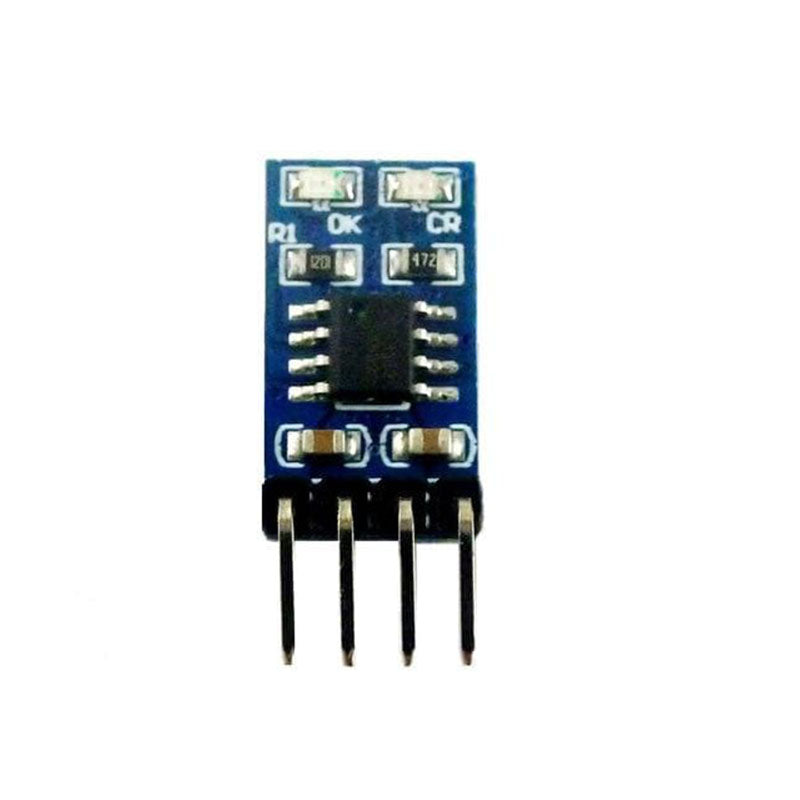

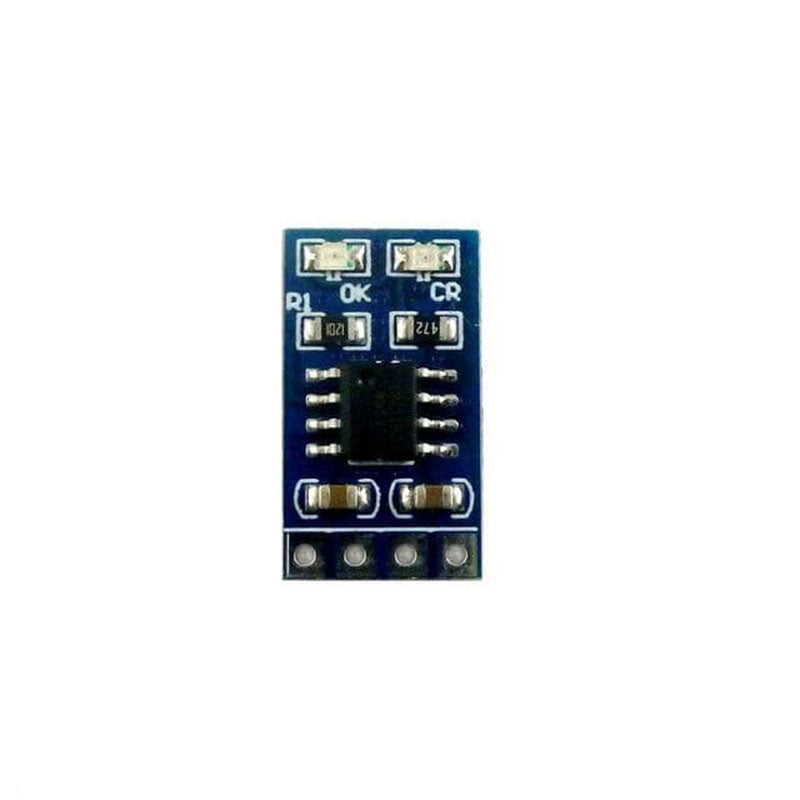

Model Number: SD05CRMA
Weight: 0.9g(With Pin),0.6g(No Pin)
is_customized: Yes
Output Current: =<1A
Input Voltage: DC 4.4-6V
Charge Voltage: 4.2V
Charge Current/Output Current: 1A
Power supply voltage DC 4.4-6V, Charging output voltage DC 4.2V;

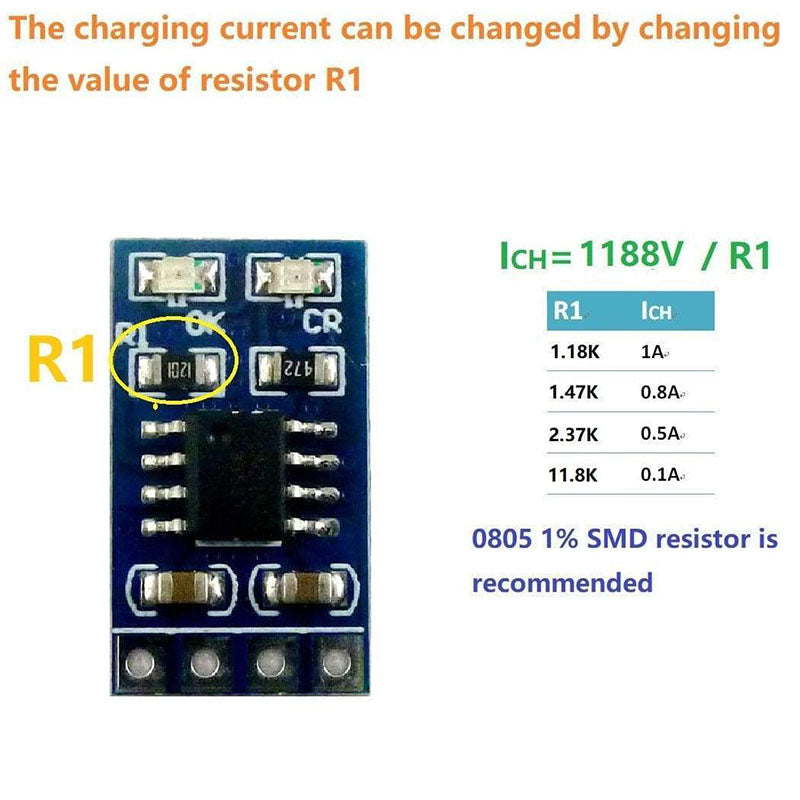

The maximum charge current/output current is 1A, but you can change the current by changing the value of the R1 resistor.
Automatic charge current adjustment based on the output capability of input power supply

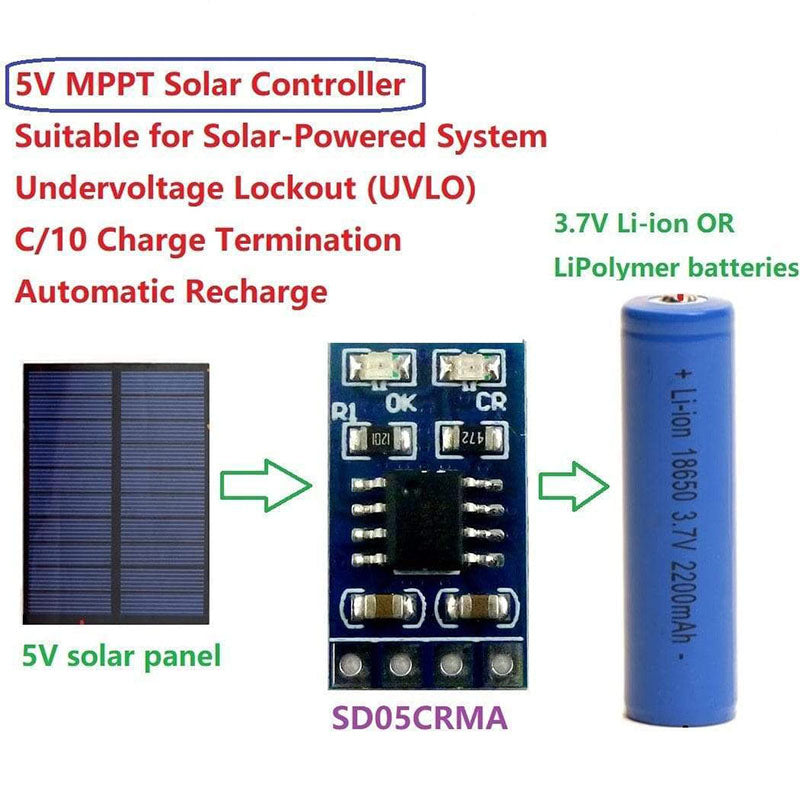

Suitable for Solar-Powered System

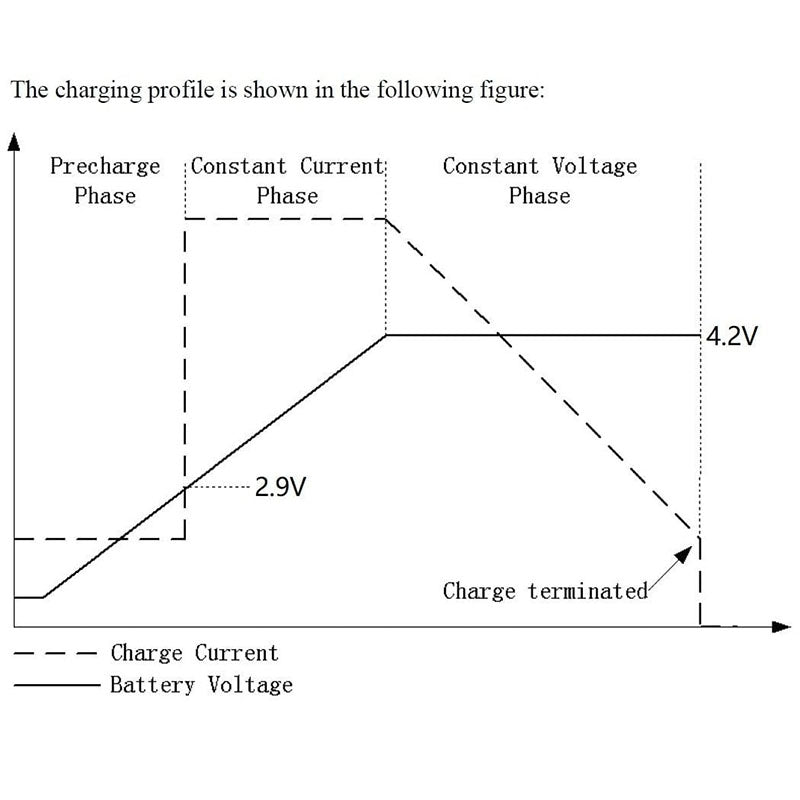

Precharge Conditioning for Reviving Deeply Discharged Cells and Minimizing Heat Dissipation During Initial Stage of Charge
Constant-Current/Constant-Voltage Operation with Thermal Regulation to Maximize Charge Rate Without Risk of Overheating
Automatic Low-Power Sleep Mode When Input Supply Voltage is Removed
C/10 Charge Termination
Automatic Recharge
Battery Overvoltage Protection
Led indicator: ''CR'' LED is charge status indicator
''OK'' LED is fully charged OR Constant voltage mode;
Operating Ambient Temperature-40℃ to +85℃
Size 18mm x 10.16mm x 2.7mm
Weight : 0.9g(With Pin),0.6g(No Pin)

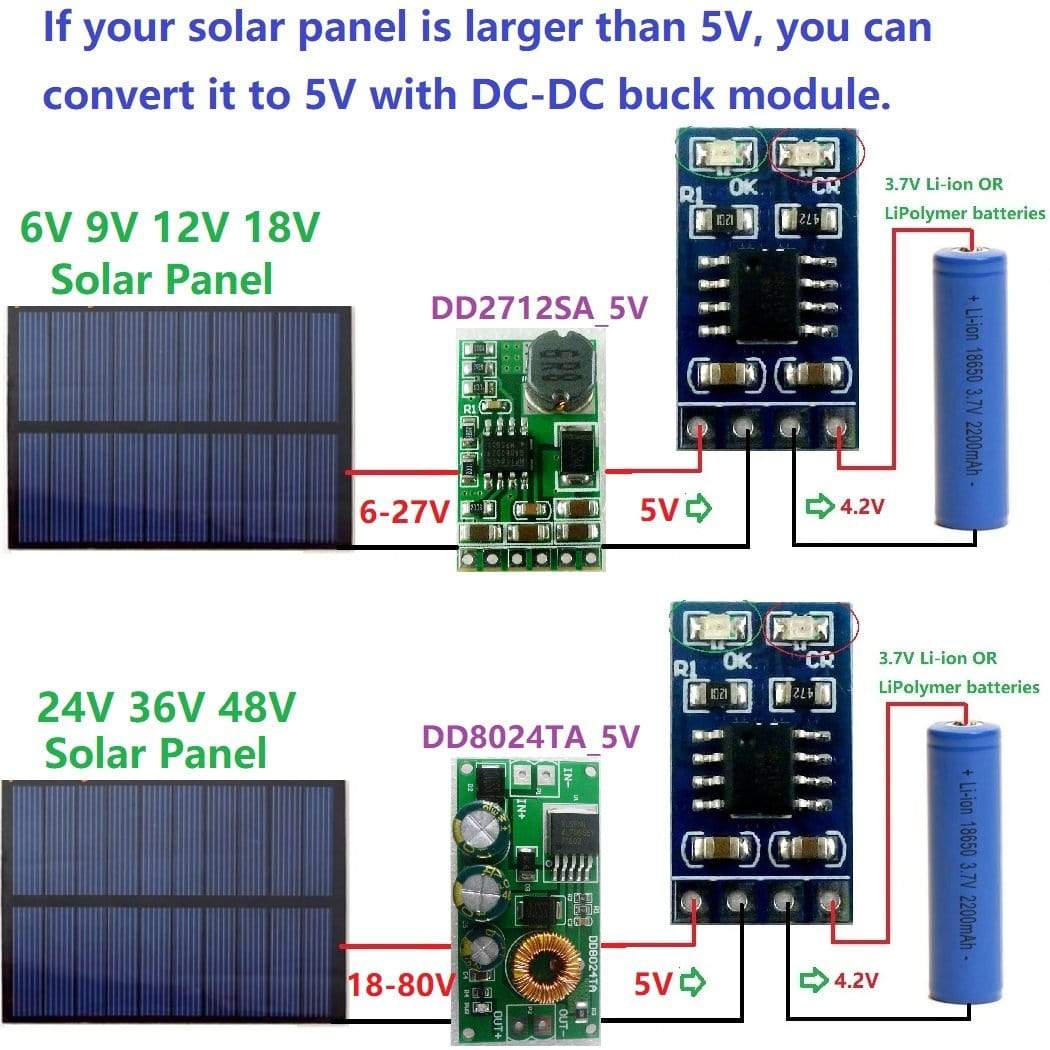

If your solar panel is 5V, then you can use it directly. Of course, the module can also be powered by a 5V DC power supply.
